2000W/208V Full X 4" Deep Condensate Evap Pan


Select from the following optional equipment to match exactly your condensate evap pan

You must select which leg type you need.

Product price
Additional options total:
Order total:
SKU 820234, 820234X1 Categories , ,

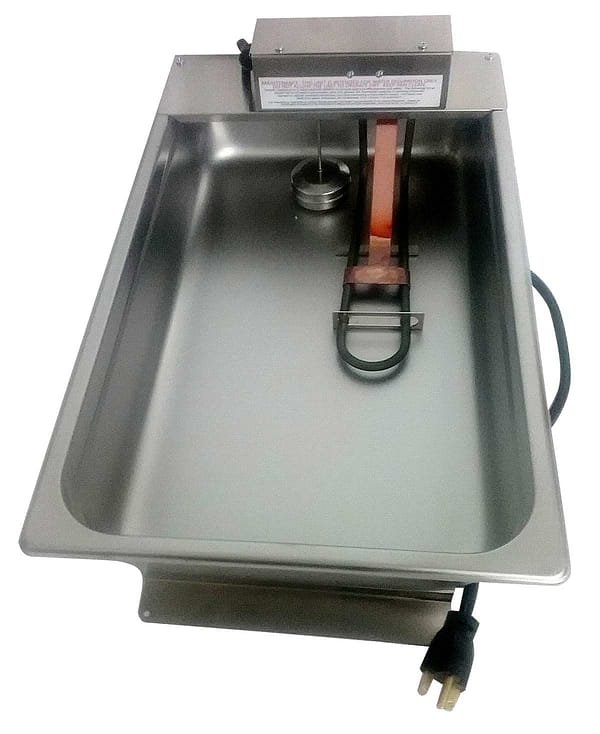

2000W/208V Full X 4″ Deep Condensate Evap Pan. This evap pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating. Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 14 quarts and an estimated dissipation rate of 67 quarts per day. This unit shown with molded cord end installed. Pan Dimensions are 20 3/4″ x 12 3/4″ x 4″.  With the Control Box on top, it measures 6 3/4″ high.The unit shown with molded cord end installed.

2000W/208V Full X 4″ Deep Condensate Evap Pan Optional Equipment:

Weight 9 lbs
Dimensions 20.75 × 12.75 × 6.75 in




Pan Size

Full x 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)
