3000W/120V Full X 4″ Deep Condensate Evap Pan

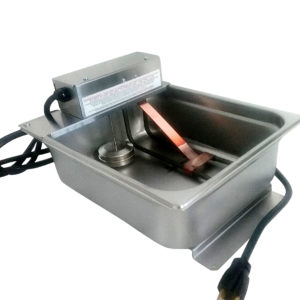

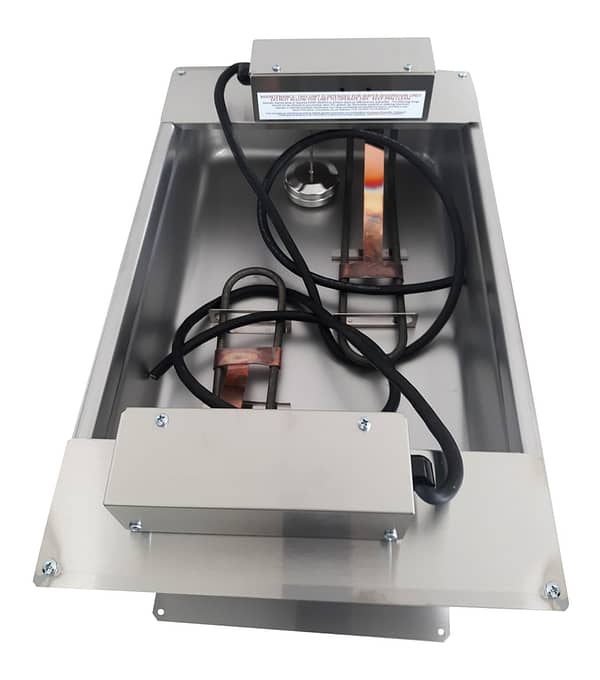

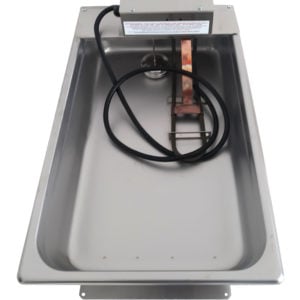

3000W/120V Full X 4″ Deep Condensate Evaporation Pan. This evap pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating. Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 14 quarts and an estimated dissipation rate of 100 quarts per day. This unit is made up of 2-1500 watt elements with their own control systems.  Pan Dimensions are 20 3/4″ x 12 3/4″ x 4″.  With the Control Box on top, it measures 6 3/4″ high.The unit shown with molded cord end installed.  Optional equipment includes:

– Copper drain tubes in 3 sizes (3/8″, 3/4″ and 1″)

– 120V 108″ molded electrical plug-in cord to plug into an outlet

– polyester coated floats for the harshest environments

– Bent or Flat legs with screw down holes
