SAME DAY SHIPPING!*

Made in the USA

1000W/208V 1/2 Size X 4″ Deep Condensate Evap Pan

$237.06

Consider using this upgrade if you are having problems with your float life. The polyurethane coating added to the standard float helps protect the float from compounds that get into the condensate water.

Select from the following optional equipment to match exactly your condensate evap pan

Product price: $237.06
Total options:
Order total:
SKU 810214, 810214X, 810214S Categories , ,

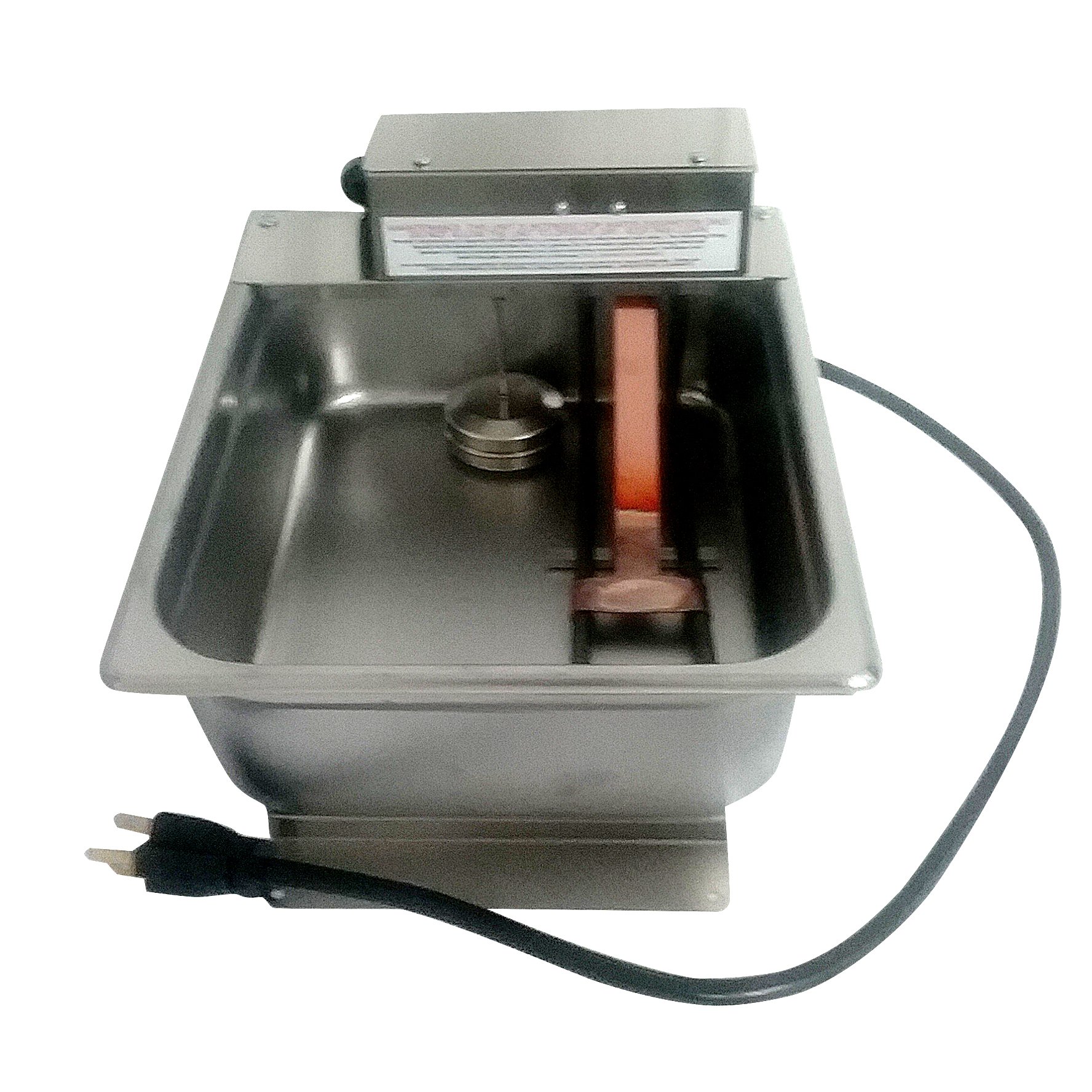

1000W 208V 1/2 Size X 4″ Deep Condensate Evaporation Pan. This evap pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating. Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 6.7 quarts and an estimated dissipation rate of 34 quarts per day. The unit shown with molded cord end installed. Pan Dimensions are 10 3/8″ x 12 3/4″ x 4″.  With the Control Box on top, it measures 6 3/4″ high.The unit shown with molded cord end installed.  Optional equipment includes:

– Copper drain tubes in 3 sizes (3/8″, 3/4″ and 1″)

– Molded electrical plug-in cord to plug into an outlet

– Polyurethane coated floats for the harshest environments

– Bent or Flat legs with screw down holes

Weight 6 lbs
Dimensions 10.375 × 12.75 × 6.75 in
Volt

208

Watt

1000

Amp

4.8

Pan Size

1/2 X 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)

4
