1000W/208V 1/3 Size X 4″ Deep Condensate Evap Pan

$237.06

Molded 120 volt cord 108"
close up of stem float
Consider using this upgrade if you are having problems with your float life. The polyurethane coating added to the standard float helps protect the float from compounds that get into the condensate water.
bent leg for 300W/120V 1/2 size x 4" deep condensate Evap Pans
flat leg for 300W/120V 1/2 size x 4" Deep Condensate Evap Pans
Birmingham copper drain tubes 3/8" 3/4" and 1"
Birmingham copper drain tubes 3/8" 3/4" and 1"
Birmingham copper drain tubes 3/8" 3/4" and 1"
Product price: $237.06
Total options:
Order total:
SKU 810234A, 810234B Categories , ,

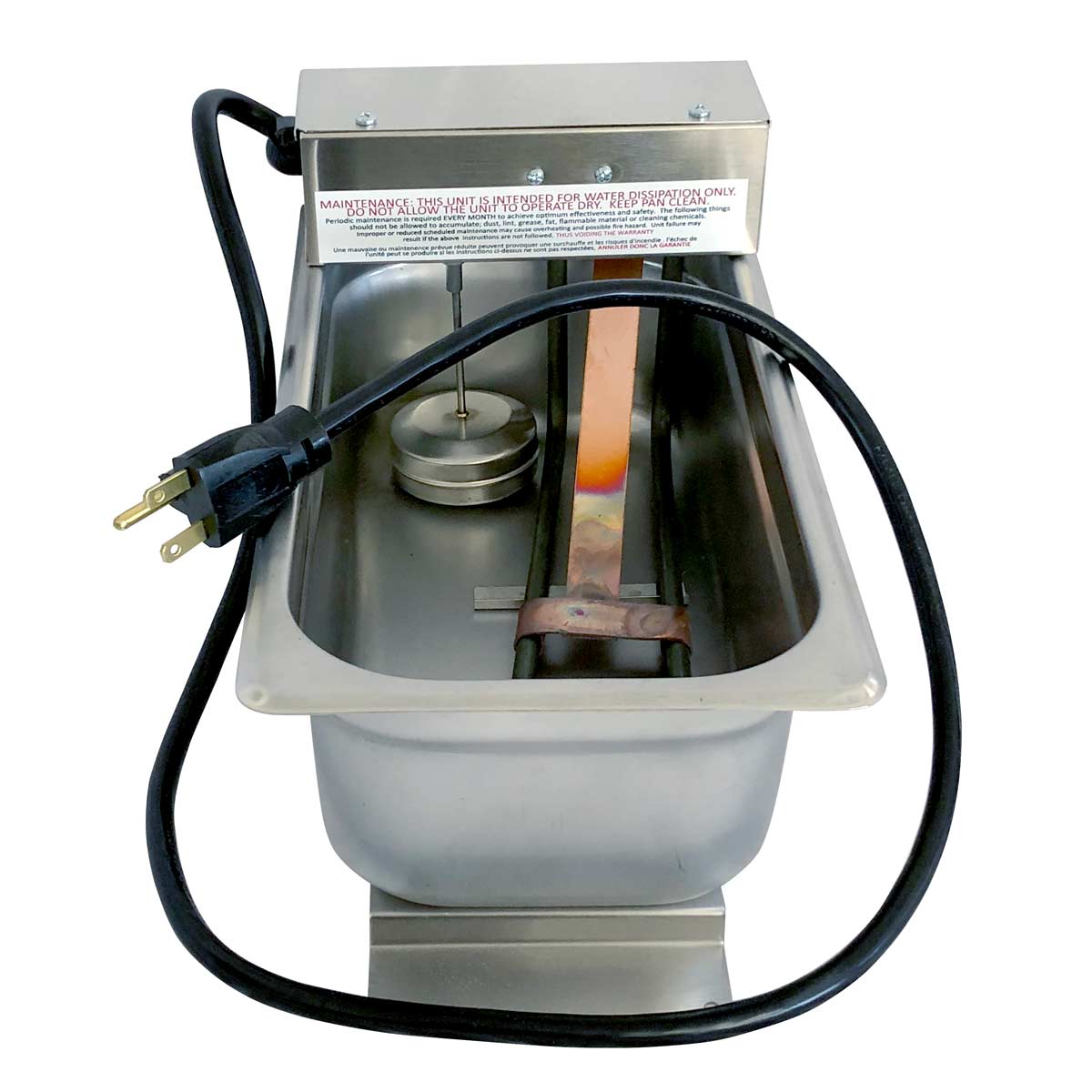

1000W 208V 1/3 Size X 4″ Deep Condensate Evaporation Pan. This evap pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating. Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 4.1 quarts and an estimated dissipation rate of 34 quarts per day. The unit shown with molded cord end installed. Pan Dimensions are 6 7/8″ x 12 3/4″ x 4″.  With the Control Box on top, it measures 6 3/4″ high.The unit shown with molded cord end installed.  Optional equipment includes:

– Copper drain tubes in 3 sizes (3/8″, 3/4″ and 1″)

– Molded electrical plug-in cord to plug into an outlet

– Polyurethane coated floats for the harshest environments

– Bent or Flat legs with screw down holes

Weight 5 lbs
Dimensions 6.875 × 12.75 × 6.75 in
Volt

208

Watt

1000

Amp

4.8

Pan Size

1/3 X 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)

4
