2000W/120V Full X 4″ Deep Condensate Evap Pan

$475.75

bent leg for 300W/120V 1/2 size x 4" deep condensate Evap Pans
flat leg for 300W/120V 1/2 size x 4" Deep Condensate Evap Pans
Birmingham copper drain tubes 3/8" 3/4" and 1"
Birmingham copper drain tubes 3/8" 3/4" and 1"
Birmingham copper drain tubes 3/8" 3/4" and 1"
close up of 120 volt molded cord 108" long
close up of stem float
Consider using this upgrade if you are having problems with your float life. The polyurethane coating added to the standard float helps protect the float from compounds that get into the condensate water.
Product price: $475.75
Total options:
Order total:
SKU 810121X2, 810134x2 Categories , ,

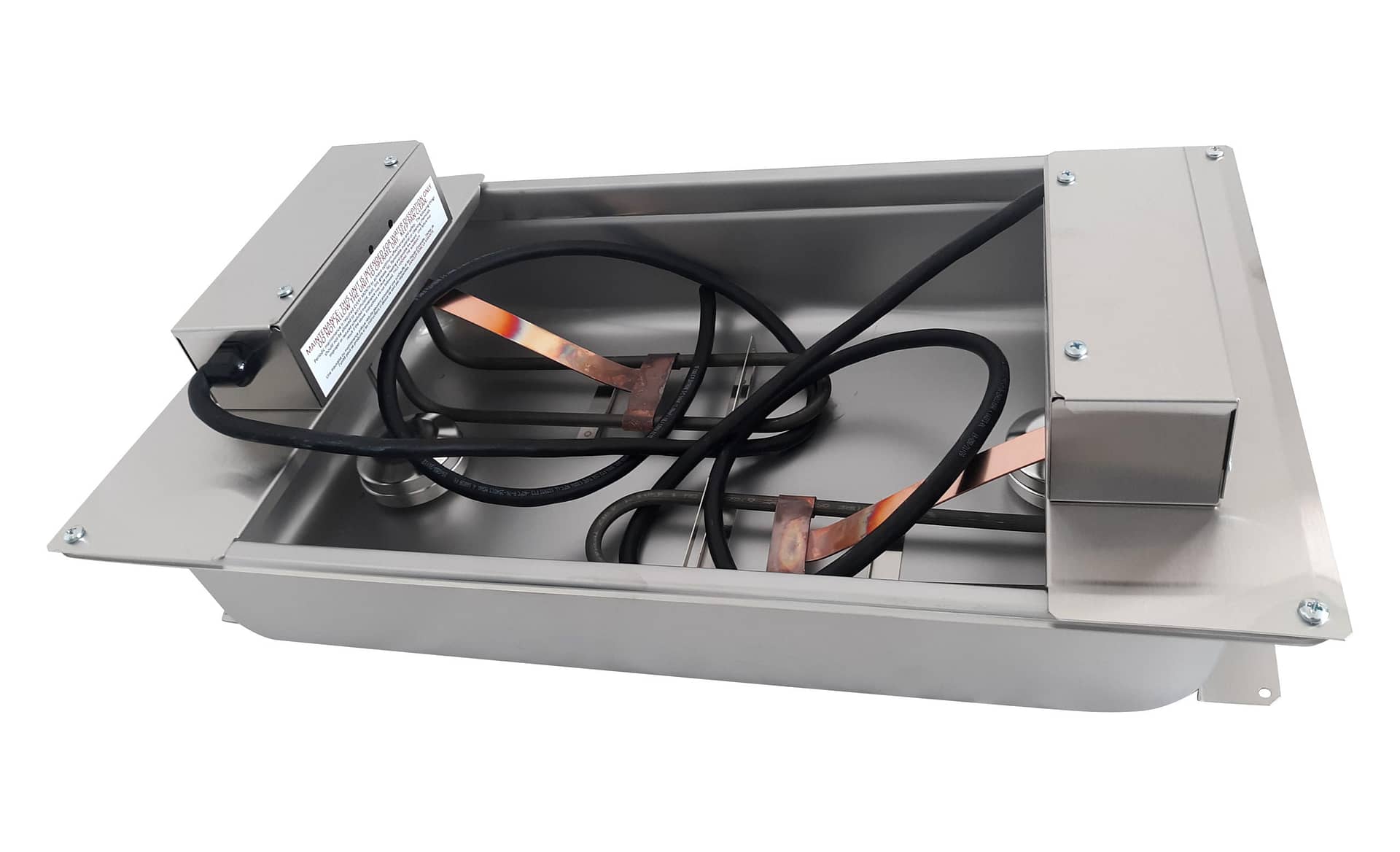

2000W/120V Full X 4″ Deep Condensate Evaporation Pan. This evap pan features stainless steel material throughout. The float is made of 316 Stainless Steel and the rest of the components are made of 301 Stainless. This unit has 2 complete sets of controls and heating elements to double the evaporative capacity of the base unit. Features include a standard 14-3 gauge wire with pigtail end for easy connection to existing power. A safety sensor to protect the heating element from over heating. Comes with your choice of legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 14 quarts and an estimated dissipation rate of 67 quarts per day.

2000W/120V Full X 4″ Deep Condensate Evaporation Pan Optional Equipment:

Weight 12 lbs
Dimensions 20.75 × 12.75 × 6.75 in
Volt

120

Watt

2000

Pan Size

Full x 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)

4
