800W/120V 1/3 Size X 4″ Deep Condensate Evap Pan

$237.06

close up of 120 volt molded cord 108" long
close up of stem float
Consider using this upgrade if you are having problems with your float life. The polyurethane coating added to the standard float helps protect the float from compounds that get into the condensate water.
bent leg for 300W/120V 1/2 size x 4" deep condensate Evap Pans
flat leg for 300W/120V 1/2 size x 4" Deep Condensate Evap Pans
Birmingham copper drain tubes 3/8" 3/4" and 1"
Birmingham copper drain tubes 3/8" 3/4" and 1"
Birmingham copper drain tubes 3/8" 3/4" and 1"
Product price: $237.06
Total options:
Order total:
SKU 880134X, 880134a Categories , ,

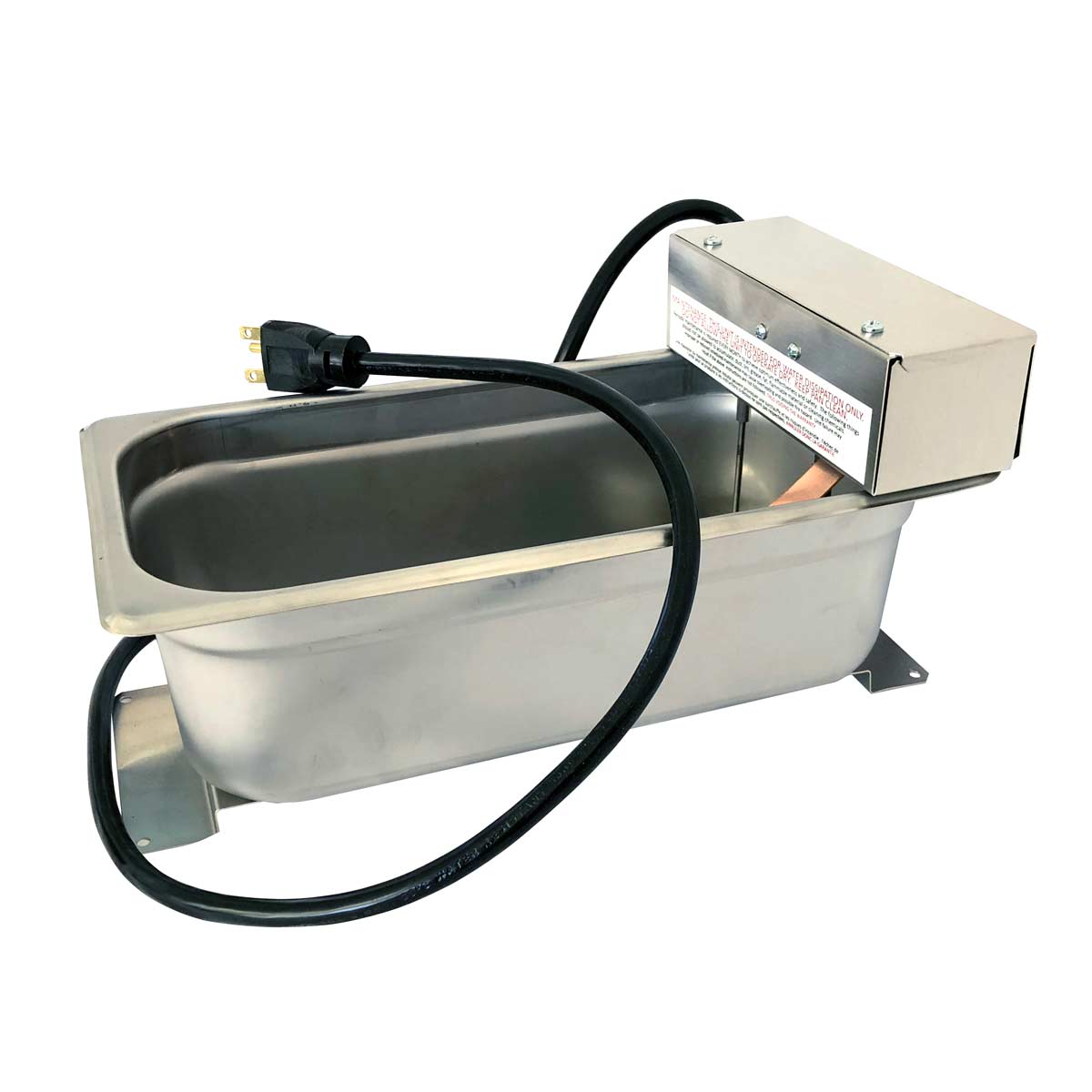

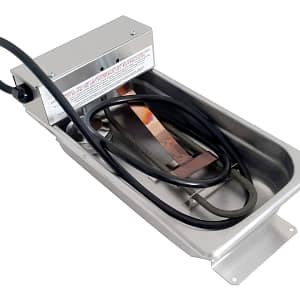

800W/120V 1/3 Size X 4″ Deep Condensate Evaporation Pan.  This evap pan features stainless steel material throughout.  The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel.  Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating.  Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case.  This pan has an estimated liquid capacity of 4.1 quarts and an estimated dissipation rate of 27 quarts per day.  Pan Dimensions are 6 7/8″ x 12 3/4″ x 4″.  With the Control Box on top, it measures 6 3/4″ high.  This unit shown with molded cord end installed.  Optional equipment includes:

800W/120V 1/3 Size X 4″ Deep Condensate Evaporation Pan Optional Equipment

Copper drain tubes in 3 sizes (3/8″, 3/4″ and 1″)

120 Volt molded electrical plug-in cord to plug into an outlet

– Polyurethane coated floats for the harshest environments

– Bent or Flat legs with screw down holes

Weight 5 lbs
Dimensions 6.875 × 12.75 × 6.75 in
Volt

120

Watt

800

Pan Size

1/3 X 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)

4
