2000W/240V Full X 4" Deep Condensate Evap Pan


Select from the following optional equipment to match exactly your condensate evap pan

You must select which leg type you need.

Product price
Additional options total:
Order total:
SKU 810244X2 Categories , ,

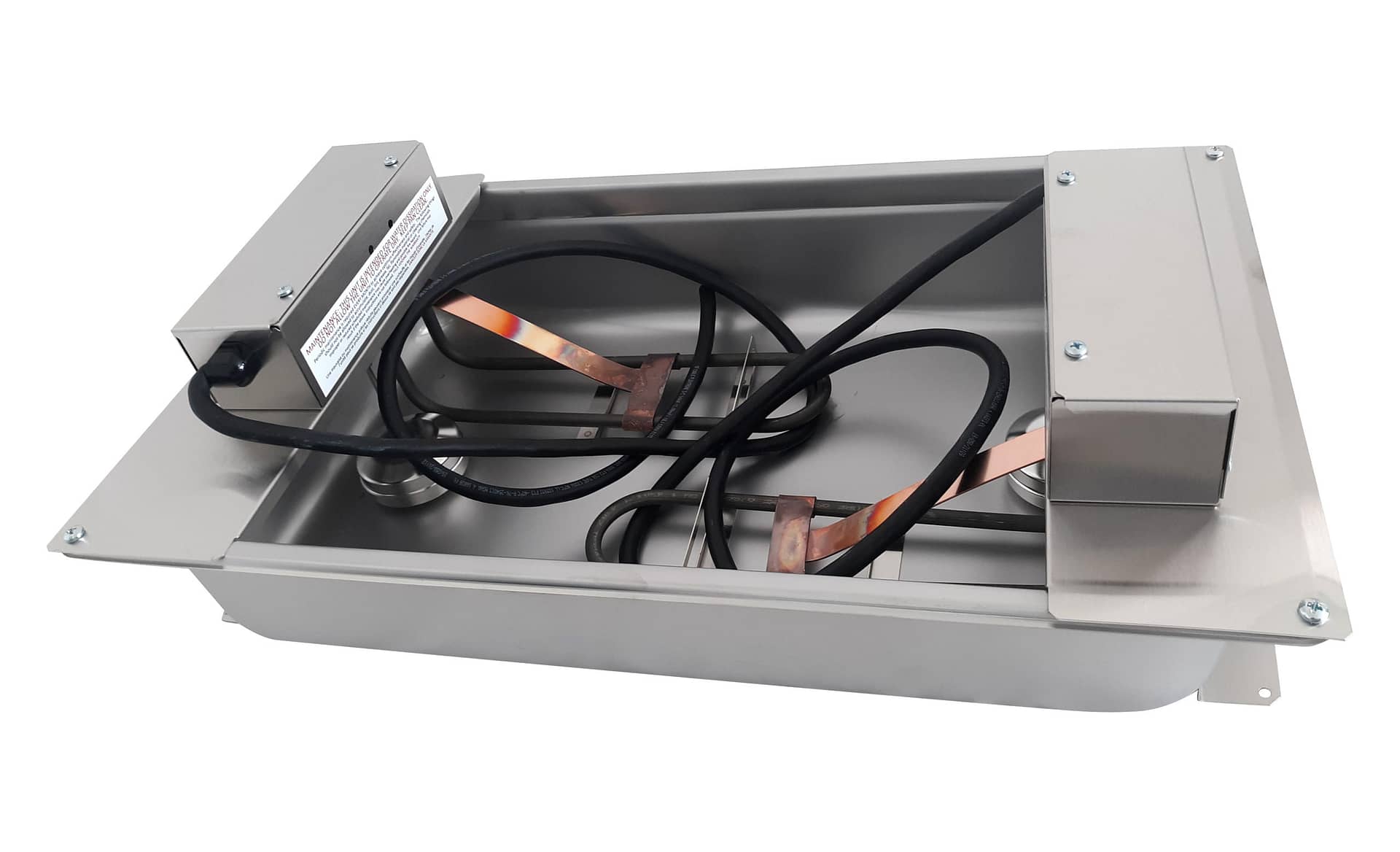

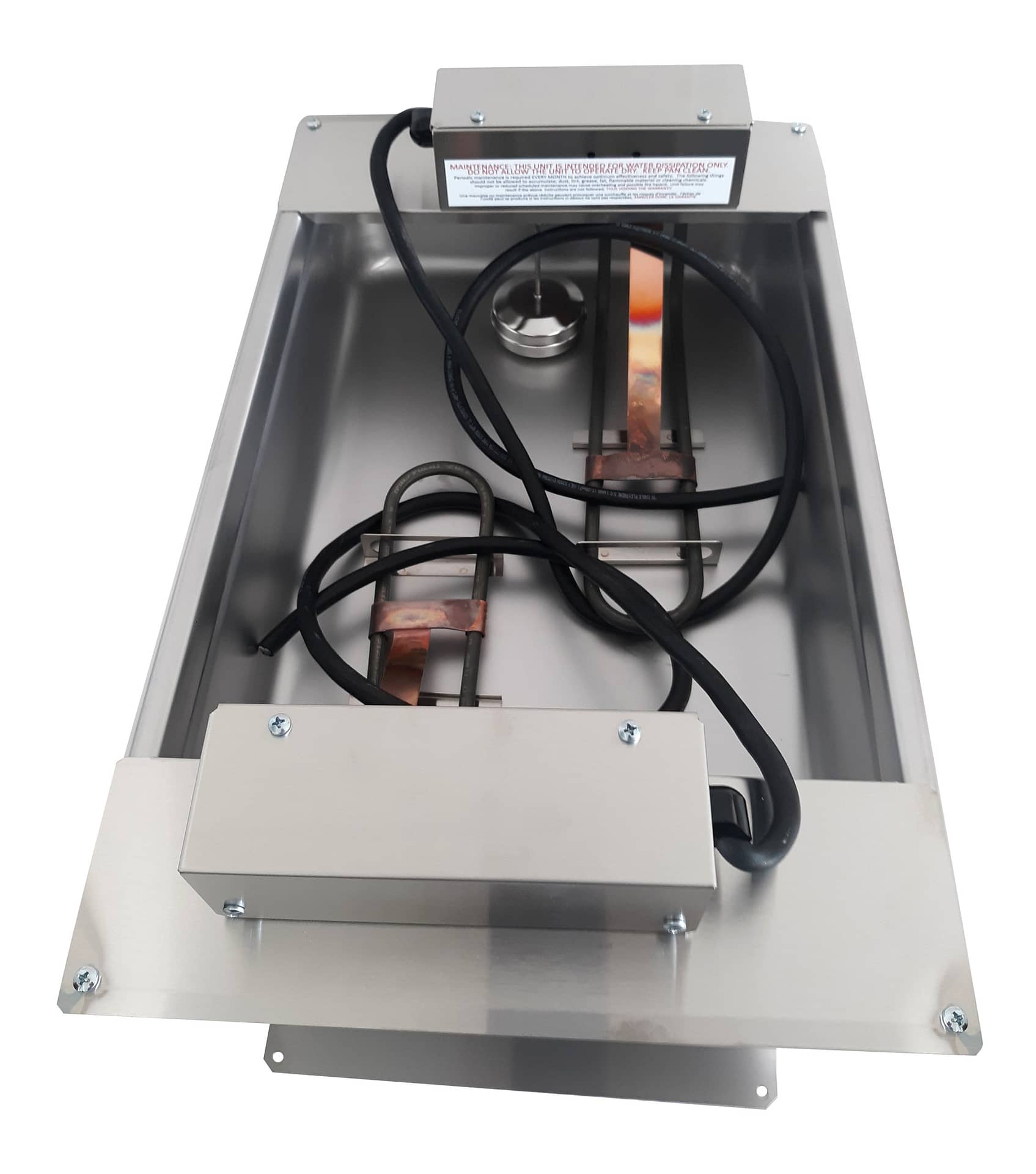

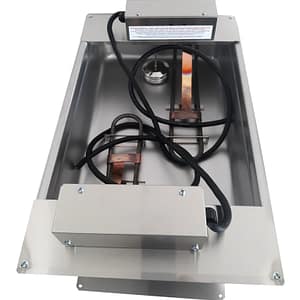

2000W/240V Full X 4″ Deep Condensate Evap Pan This evap pan features stainless steel material throughout. The float is made of 316 Stainless Steel and the rest of the components are made of 301 Stainless. This unit has 2 complete sets of controls and heating elements to double the evaporative capacity of the base unit. Features include a standard 14-3 gauge wire with pigtail end for easy connection to existing power. A safety sensor to protect the heating element from over heating. Comes with your choice of legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 14 quarts and an estimated dissipation rate of 67 quarts per day.

2000W/240V Full X 4″ Deep Condensate Evap Pan Optional Equipment

Weight 12 lbs
Dimensions 20.75 × 12.75 × 6.75 in




Pan Size

Full x 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)
