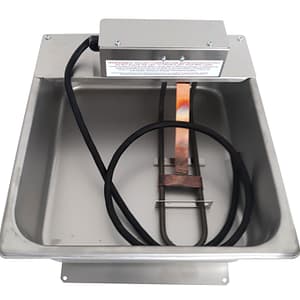

500W/120V Full Size X 4″ Deep Condensate Evap Pan Sub Assembly


Select from the following optional equipment to match exactly your condensate evap pan

Consider using this upgrade if you are having problems with your float life. The polyurethane coating added to the standard float helps protect the float from compounds that get into the condensate water.
Product price: $235.13
Total options:
Order total:
SKU 850134SA Categories , , ,

500W/120V Full Size X 4″ Deep Condensate Evap Pan Sub Assembly.  This Sub Assembly pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel.  Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating.  This Sub Assembly has an estimated dissipation rate of 17 quarts per day.  Optional equipment includes:

120V molded electrical plug-in cord to plug into an outlet

– Polyurethane coated floats for the harshest environments

Weight 5 lbs
Dimensions 13 × 13 × 7 in




Pan Size

1/2 X 4”

Depth (in)
