1500W/208V 1/2 Size X 4" Deep Condensate Evap Pan

$198.85

Select from the following optional equipment to match exactly your condensate evap pan

You must select which leg type you need.

Product price
Additional options total:
Order total:
SKU 815214 Categories , ,

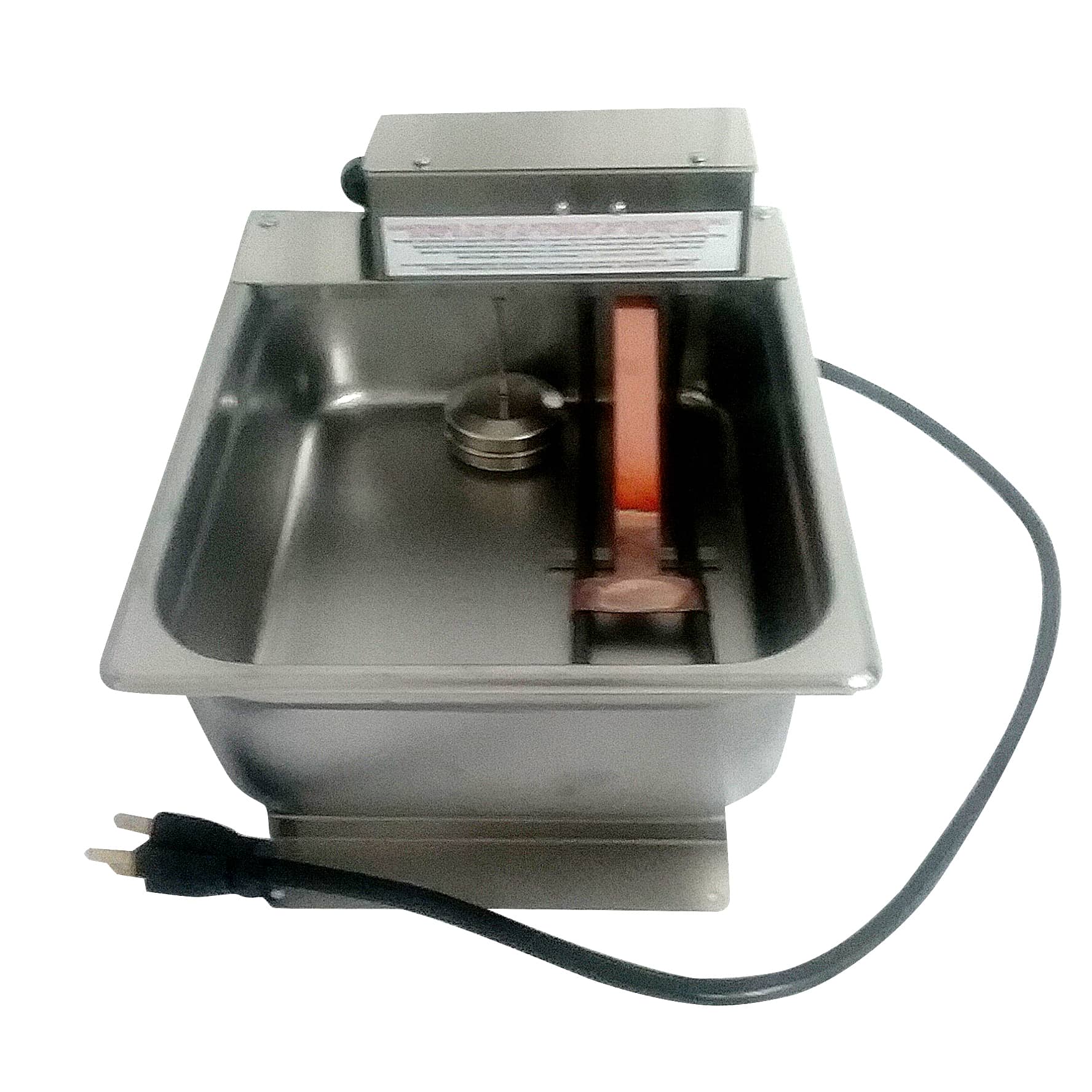

1500W/208V 1/2 Size X 4″ Deep Condensate Evaporation Pan. This evap pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating. Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 6.7 quarts and an estimated dissipation rate of 50 quarts per day. The unit shown with molded cord end installed. Pan Dimensions are 10 3/8″ x 12 3/4″ x 4″.  With the Control Box on top, it measures 6 3/4″ high.The unit shown with molded cord end installed.

1500W/208V 1/2 Size X 4″ Deep Condensate Evaporation Pan Optional Equipment:

Weight 6 lbs
Dimensions 10.375 × 12.75 × 6.75 in
Volt

208

Watt

1500

Amp

7.2

Pan Size

1/2 X 4”

Pan Only Options

Bent Legs, Flat Legs

Depth (in)

4
