600W/120V 1/2 Size X 2 1/2″ Deep Condensate Evap Pan


Consider using this upgrade if you are having problems with your float life. The polyurethane coating added to the standard float helps protect the float from compounds that get into the condensate water.

Select from the following optional equipment to match exactly your condensate evap pan

Product price: $237.06
Total options:
Order total:
SKU 860114X Categories , ,

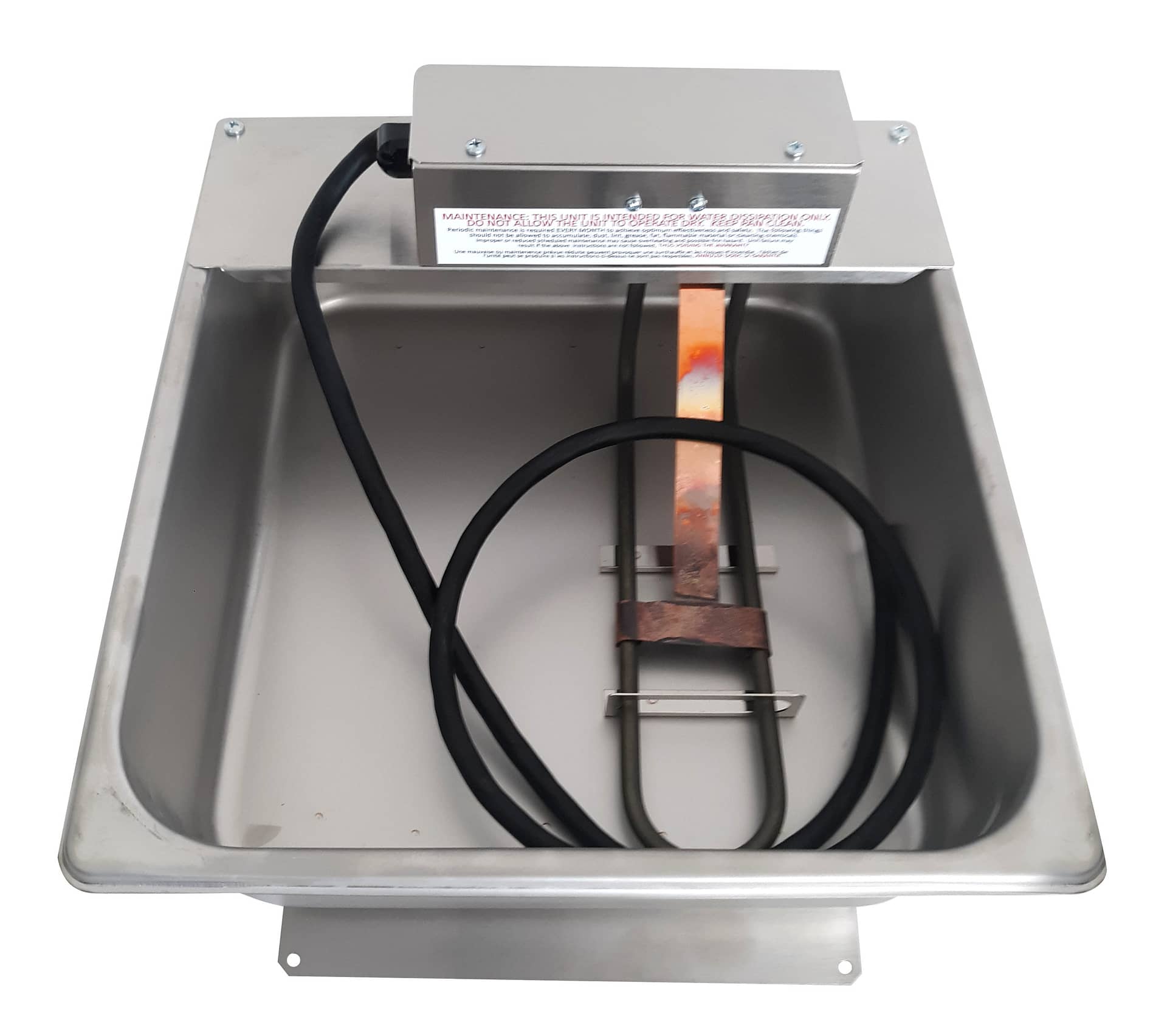

600 Watt 120 Volt 1/2 Size X 2 1/2″ Deep Condensate Evaporation Pan. This condensate evaporation pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating.  This condensate evaporation pan has estimated dissipation rate of 20 quarts per day. Optional equipment includes:

–  Copper Drain Tube (3/8″, 3/4″ and 1″)

–  120 Volt Molded electrical plug-in cord to plug into an outlet

– Polyurethane coated floats for the harshest environments (Short Stem Coated Float or Long Stem Coated Float)

– Bent or Flat legs with screw down holes


Weight 6 lbs
Dimensions 10 × 12.75 × 5.25 in






Pan Size

Full x 2 1/2”

Depth (in)
