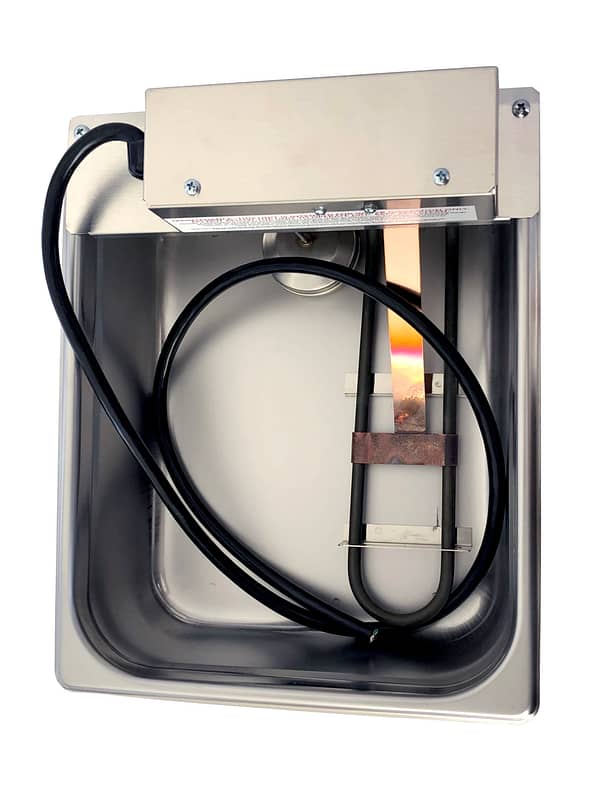

800W/120V 2/3 Size X 4″ Deep Condensate Evap Pan. This evap pan features stainless steel material throughout. The float is made of electro polished 316 Stainless Steel and the rest of the components are made of 301/304 Stainless Steel. Standard features include a 14-3 gauge wire with pigtail end for easy connection to existing power, a safety sensor to protect the heating element from over heating. Comes with your choice of either flat or bent legs with screw down holes to securely attach to the case. This pan has an estimated liquid capacity of 9.3 quarts and an estimated dissipation rate of 27 quarts per day. Pan Dimensions are 13 7/8″ x 12 3/4″ x 4″. With the Control Box on top, it measures 6 3/4″ high. Optional equipment includes:
– Copper drain tubes in 3 sizes (3/8″, 3/4″ and 1″)
– 120V Molded electrical plug-in cord to plug into an outlet
– Polyurethane coated floats for the harshest environments
– Bent or Flat legs with screw down holes
